Gas Engine Intercooler: Its Role and Field Inspection
In the previous article, we looked at how a turbocharger uses exhaust-gas energy to compress air or an air-fuel mixture.

When a gas is compressed by the turbocharger compressor, both its pressure and temperature increase.

An intercooler lowers the temperature of the compressed air or mixture and helps provide suitable intake conditions for the engine.

A change in intercooler performance can affect the mixture temperature, differential pressure across the intercooler, engine output, and combustion condition.

This article explains how an intercooler removes heat and what should be checked in the field, including temperature, differential pressure, internal fouling, and cooling-water leakage.

Related article | How Does a Gas Engine Turbocharger Work?

1. What Does an Intercooler Do?

When air or an air-fuel mixture is compressed by the turbocharger, its temperature rises.

At the same pressure, a higher-temperature gas has a lower density.. This can reduce the mass of air or mixture contained in a given volume and can also affect engine output, combustion stability, and the margin against knocking.

The intercooler cools the compressed air or fuel-gas/air mixture before it enters the engine.

In some premixed gas engines I have worked with, fuel gas and air were mixed before entering the turbocharger. The compressed mixture was then cooled in the intercooler before being supplied to the engine.

The basic flow was as follows:

Fuel gas and air → Mixing → Boosting by the turbocharger → Cooling in the intercooler → Intake manifold → Cylinders

In this type of engine, the intercooler may also be referred to as a fuel mixture cooler.

In other engine designs, only air passes through the turbocharger and intercooler before fuel gas is added farther downstream.

The fluid passing through the intercooler must therefore be confirmed using the fuel-gas and intake-system diagrams for the specific engine.

2. How Does an Intercooler Remove Heat?

In the water-cooled intercoolers I have worked with, the hot fuel-gas/air mixture and cooling water flowed through separate passages.

The two fluids did not mix directly. Heat moved from the hot mixture to the cooling water through tubes, plates, or other heat-transfer surfaces inside the intercooler.

The cooled mixture then moved toward the engine, while the cooling water carried the absorbed heat through the cooling-water system.

Depending on the plant configuration, this heat may be transferred to a heat-recovery system or rejected through a radiator or another cooling device.

Air-cooled intercoolers may also be used in some installations.

The actual cooling-water circuit and heat-rejection or heat-recovery arrangement depend on the engine design and the plant cooling system.

Simplified diagram of intercooler cooling-water circulation, heat recovery, and radiator heat rejection.

3. What Do the Inlet and Outlet Temperatures Show?

The intake-side inlet and outlet temperatures can be compared to evaluate how much the air or mixture is cooled as it passes through the intercooler.

Under normal operating conditions, the outlet temperature should generally be lower than the inlet temperature.

However, the temperature difference alone does not provide a complete evaluation of intercooler performance.

It can change with:
- Engine load
- Intake mass flow
- Turbocharger compression conditions
- Cooling-water inlet temperature
- Cooling-water flow
- Ambient conditions
For this reason, temperature data should be compared at a similar engine load and under comparable operating conditions.

An outlet temperature that is higher than usual does not always mean that the intercooler itself is damaged. High cooling-water temperature, insufficient circulation, changes in turbocharger operation, or a faulty temperature sensor can produce a similar result.

Excessive cooling can also create problems. If the air or mixture is cooled below its dew point, moisture may condense inside the intercooler or intake piping.

The outlet temperature should therefore be maintained within the operating range specified by the engine manufacturer.

4. What Is the Difference Between Pressure and Differential Pressure?

The inlet and outlet pressures indicate the pressure at each measurement point.

Differential pressure is the difference between the two values:

Differential pressure = Intercooler inlet pressure − Intercooler outlet pressure

When air or an air-fuel mixture passes through the intercooler, a certain amount of pressure loss occurs because of flow resistance.

If the differential pressure becomes higher than usual at the same engine load, the resistance inside the intercooler or connected piping may have increased.

Possible causes include:
- Fouling in the air or mixture passages
- A restricted flow path
- Obstruction in the connected piping
- A valve that is not fully open
- A problem with the pressure-sensing lines
- A faulty pressure sensor
Differential pressure also changes with gas flow, density, engine load, and measurement location.

Values measured at different loads should not be compared directly. The inlet and outlet pressures and their differential should be compared under similar operating conditions.

A low outlet pressure alone does not prove that the intercooler is blocked. Turbocharger performance, an upstream air-filter restriction, piping leakage, and engine load can also affect the measured pressure.

5. What Should Be Checked When the Mixture Temperature Is High?

If the mixture temperature downstream of the intercooler is higher than usual, the entire heat-transfer path should be checked before identifying the intercooler as the cause.

First, check the temperature entering the intercooler and the turbocharger operating condition.

Next, check the cooling-water inlet and outlet temperatures, pump operation, valve position, and any part of the system that could affect cooling-water circulation.

Possible causes include:
- High cooling-water inlet temperature
- Reduced cooling-water flow or abnormal circulation
- Fouling or deposits in the cooling-water passages
- Fouling on the air or mixture side
- A change in turbocharger outlet temperature
- A change in boost conditions
- A faulty temperature sensor or wiring problem
Cooling-water pressure should not be treated as the same measurement as cooling-water flow.

A pressure change alone does not prove that the flow is insufficient. The sensor location and cooling-system arrangement must be considered, and temperature, flow, pump condition, and valve position should be compared whenever those measurements are available.

6. How Should Fouling and Cleaning Be Evaluated?

Fouling on the air or mixture side can increase flow resistance and affect the differential pressure across the intercooler.

Oil mist, dust, fuel-related deposits, or other contaminants may accumulate on the gas-side passages and heat-transfer surfaces.

Deposits, scale, corrosion products, or sludge on the cooling-water side can reduce heat transfer and increase the outlet temperature of the air or mixture.

If the differential pressure continues to rise or cooling performance gradually decreases under comparable operating conditions, the internal condition of the intercooler may need to be inspected.

Cleaning should not be performed only because the outlet temperature is high.

Cooling-water temperature and circulation, turbocharger operation, operating load, and instrument readings should first be checked to determine whether fouling is a likely cause.

If chemical cleaning is required, the cleaning agent must be compatible with:
- The intercooler material
- The heat-transfer surfaces
- Gaskets and seals
- The type of contamination
The manufacturer’s cleaning limits and procedures should be followed.

After cleaning, the intake side must be checked to ensure that no cleaning liquid or foreign material remains. The intercooler should be properly dried before it is returned to service.

Temperatures and differential pressure should then be compared with the values recorded before cleaning at a similar engine load.

7. Is Water Inside the Intercooler Always a Coolant Leak?

Water found inside an intercooler or intake pipe does not always indicate cooling-water leakage.

Air naturally contains water vapor. If warm and humid air is cooled below its dew point inside the intercooler, some of that vapor can condense into liquid water.

The amount of condensate can change according to:
- Ambient temperature and humidity
- Intake temperature
- Cooling-water temperature
- Engine load
- Operating duration
However, cooling water can also enter the air or mixture side if a tube, plate, seal, or another internal heat-transfer surface is damaged.

To distinguish condensate from cooling-water leakage, the following should be checked together:
- A continuous decrease in cooling-water level or an increase in makeup-water consumption
- Changes in cooling-system pressure
- An increase in the amount of automatically supplied makeup water
- Color or chemical characteristics of the collected liquid
- Moisture in the piping downstream of the intercooler
- Results of a leak test or pressure test
Condensate and cooling-water leakage have different causes and require different corrective actions. The presence of water alone is not enough to identify the source.

8. Where Can Intercooler Leakage Occur?

An intercooler can develop leakage on the air or mixture side, the cooling-water side, or internally between the two circuits.

An external leak on the air or mixture side may occur at:
- Piping connections
- Flanges
- Gaskets
- Clamps
- Inspection covers
- Intercooler casing joints
A cooling-water leak may appear around cooling-water connections, gaskets, drain points, or the intercooler casing.

If an internal heat-transfer surface is damaged, cooling water may enter the air or mixture passage. It can then move through the intake piping toward the engine.

Depending on the relative pressures of the two circuits, air or mixture may also enter the cooling-water side.

If the cooling-water level or system pressure continues to decrease without a visible external leak, internal intercooler leakage should be considered.

The piping downstream of the intercooler, the engine intake path, exhaust condition, and lubricating-oil condition may also need to be checked.

At sites equipped with automatic cooling-water makeup, a leak may not immediately appear as a low level. The makeup quantity and its trend should therefore be monitored separately.

If a premixed air-fuel charge passes through the intercooler, an external leak can release a flammable mixture. It must not be treated as an ordinary compressed-air leak.

9. What Should Be Checked in the Field?

The intercooler cannot normally be opened during operation to inspect its internal condition.

Its condition must therefore be evaluated by comparing operating data recorded at a similar engine load and under similar conditions.

Important inspection items include:
- Air or mixture temperature at the intercooler inlet and outlet
- Air or mixture pressure at the inlet and outlet
- Differential pressure across the intercooler
- Cooling-water inlet and outlet temperatures
- Cooling-water pressure and circulation condition
- Cooling-water pump operation
- Cooling-water valve position
- External leakage on the air, mixture, and cooling-water sides
- Cooling-water level and makeup quantity
- Engine load and boost pressure
- Related temperature and pressure sensor condition
Intercooler maintenance overview showing differential pressure changes, contamination and cleaning checks, and the possible effects of internal coolant leakage.

If the outlet temperature is high, the cooling-water condition, intercooler fouling, turbocharger operation, and temperature sensor should be checked in sequence.

If the differential pressure has increased, the intercooler passages, connected piping, sensing lines, and pressure sensors should all be checked.

A single measurement should not be used to determine the cause. Temperature, pressure, differential pressure, engine load, and operating trends must be considered together.

10. What Safety Precautions Are Required?

Even after the engine has stopped, the cooling-water system may remain hot and pressurized.

Before opening cooling-water piping or intercooler connections, confirm that the temperature has fallen to a safe level and that the internal pressure has been safely released.

Differential pressure across the air or mixture side is meaningful when gas is actually flowing. Measurements taken during operation must be performed without contacting rotating parts, hot surfaces, or pressurized piping.

If a flammable premixed charge passes through the intercooler, the fuel supply must be isolated before the piping or intercooler is opened.

Residual gas must be removed using the approved procedure, adequate ventilation must be provided, and the gas concentration must be confirmed before work begins.

Disassembly, cleaning, leak testing, and pressure testing must follow:
- The engine and intercooler manufacturer’s procedures
- The applicable system drawings
- The site permit-to-work requirements
- The site gas-safety procedures
After maintenance, check the airtightness of the intake or mixture side, the cooling-water connections, valve positions, and instrument connections before restarting the engine.

Conclusion

An intercooler is a heat exchanger that cools air or an air-fuel mixture after it has been compressed by the turbocharger.

Lowering the intake temperature helps provide suitable intake density and supports stable engine output and combustion.

In the field, the air or mixture temperature, cooling-water condition, differential pressure, and leakage should be compared with normal operating data recorded under similar conditions.

Temperature, pressure, and differential pressure represent different conditions and must be interpreted separately.

Water found inside the intercooler is not always caused by cooling-water leakage. Condensate formed under certain operating conditions must be distinguished from an internal leak by checking cooling-water loss, automatic makeup quantity, liquid characteristics, system pressure, and test results.

The intercooler should not be evaluated as an isolated component. Its condition must be considered together with the turbocharger, intake piping, cooling-water system, sensors, and control devices.
09/15/2026
How Does a Gas Engine Turbocharger Work?

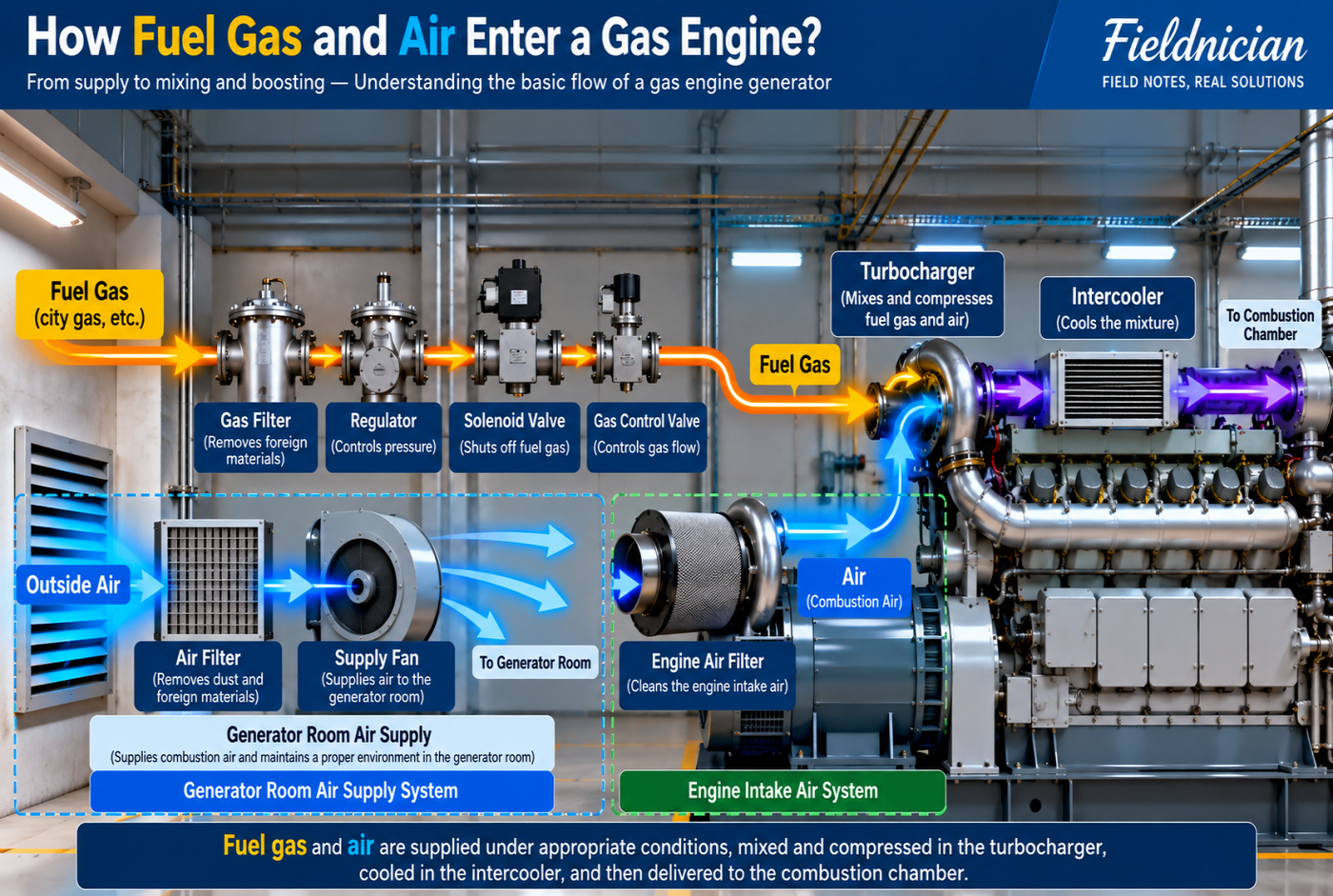

In the previous article, we looked at how fuel gas and air travel through their separate supply systems, mix, and enter the engine.

To produce more power, a gas engine must burn more fuel while maintaining stable combustion.

Simply increasing the amount of fuel is not enough. A corresponding mass of air must also be supplied.

A turbocharger uses energy from the engine’s exhaust gas to compress the air or mixture entering the engine.

Changes in turbocharger performance can affect boost pressure and engine output as well as exhaust gas temperature and combustion stability.

In this article, we will look at the construction and operating principles of a turbocharger, the conditions to monitor during operation, and the main items checked during scheduled disassembly and inspection.

Related article｜How Do Fuel Gas and Air Enter a Gas Engine?

1. Why Does a Gas Engine Need a Turbocharger?

A naturally aspirated engine relies on the pressure difference created by piston movement to draw outside air into the cylinders.

However, there is a limit to the mass of air that atmospheric pressure and piston movement alone can supply.

A turbocharger raises the pressure in the intake system, allowing a greater mass of air to enter cylinders of the same size.

When more air is available, the engine can burn a corresponding amount of additional fuel and produce the required output.

A turbocharger uses energy from the engine’s exhaust gas instead of relying on a separate electric motor to drive the compressor.

In this way, part of the energy remaining in the exhaust gas is used to rotate the turbine and compress the intake air or mixture.

2. What Are the Main Components of a Turbocharger?

A turbocharger consists mainly of a turbine, a compressor, and a center housing.

The turbine is installed on the exhaust side, while the compressor is installed on the intake side.

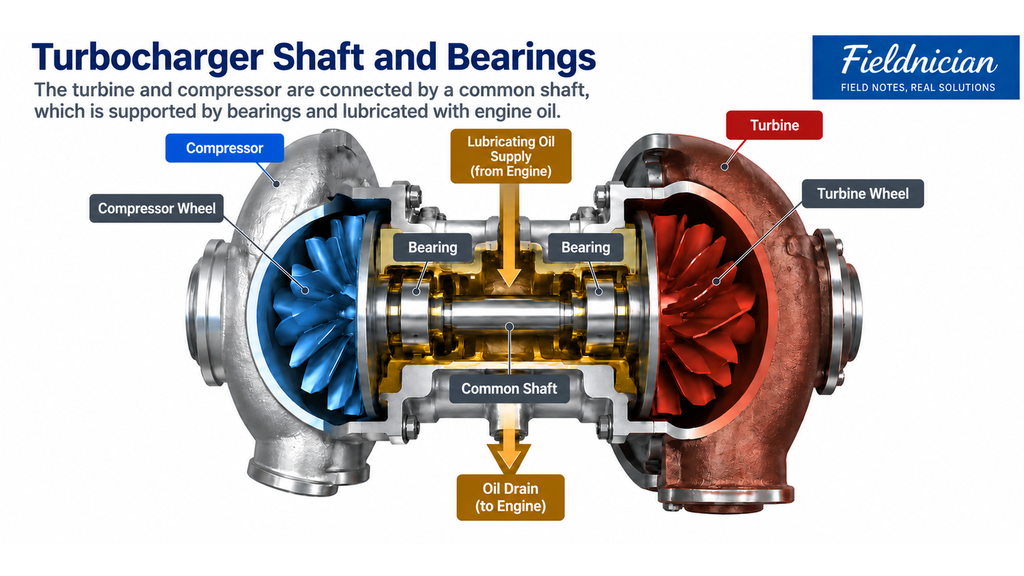

The turbine wheel and compressor wheel are connected by a common shaft and rotate together around the same axis.

The center housing contains the shaft that connects the two wheels and the bearings that support the rotating assembly.

The basic power-transfer path can be summarized as follows:

Exhaust gas
→ Turbine wheel
→ Shaft
→ Compressor wheel
→ Boosted air or mixture

The detailed construction, size, bearing and sealing arrangements, lubrication method, and cooling method vary depending on the engine and turbocharger model.

3. How Does Exhaust Gas Drive the Turbine?

Exhaust gas leaving the cylinders still contains pressure and thermal energy.

After passing through the exhaust valves, the gas travels through the exhaust manifold and enters the turbine housing.

The turbine housing directs the exhaust gas toward the turbine-wheel blades, causing the turbine wheel to rotate.

The turbine wheel transmits this rotation through the shaft to the compressor wheel on the opposite side.

After passing through the turbine, the exhaust gas continues through the exhaust system. Depending on the installation, some of its remaining heat may also be recovered.

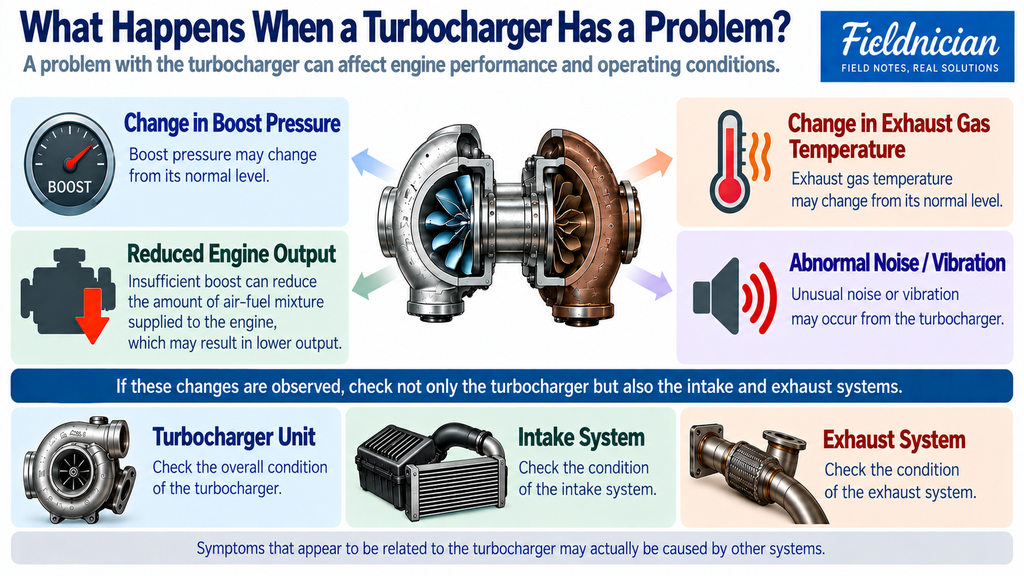

Restricted exhaust flow, deposits, or damage on the turbine side can affect turbocharger rotation and boost performance.

4. What Does the Compressor Compress?

As the compressor wheel rotates, it accelerates the air or mixture entering the intake system and raises its pressure.

The turbine and compressor handle separate gas streams. Only mechanical rotation is transmitted between them through the common shaft.

What passes through the compressor depends on the engine’s fuel-supply system and the location of the gas mixer.

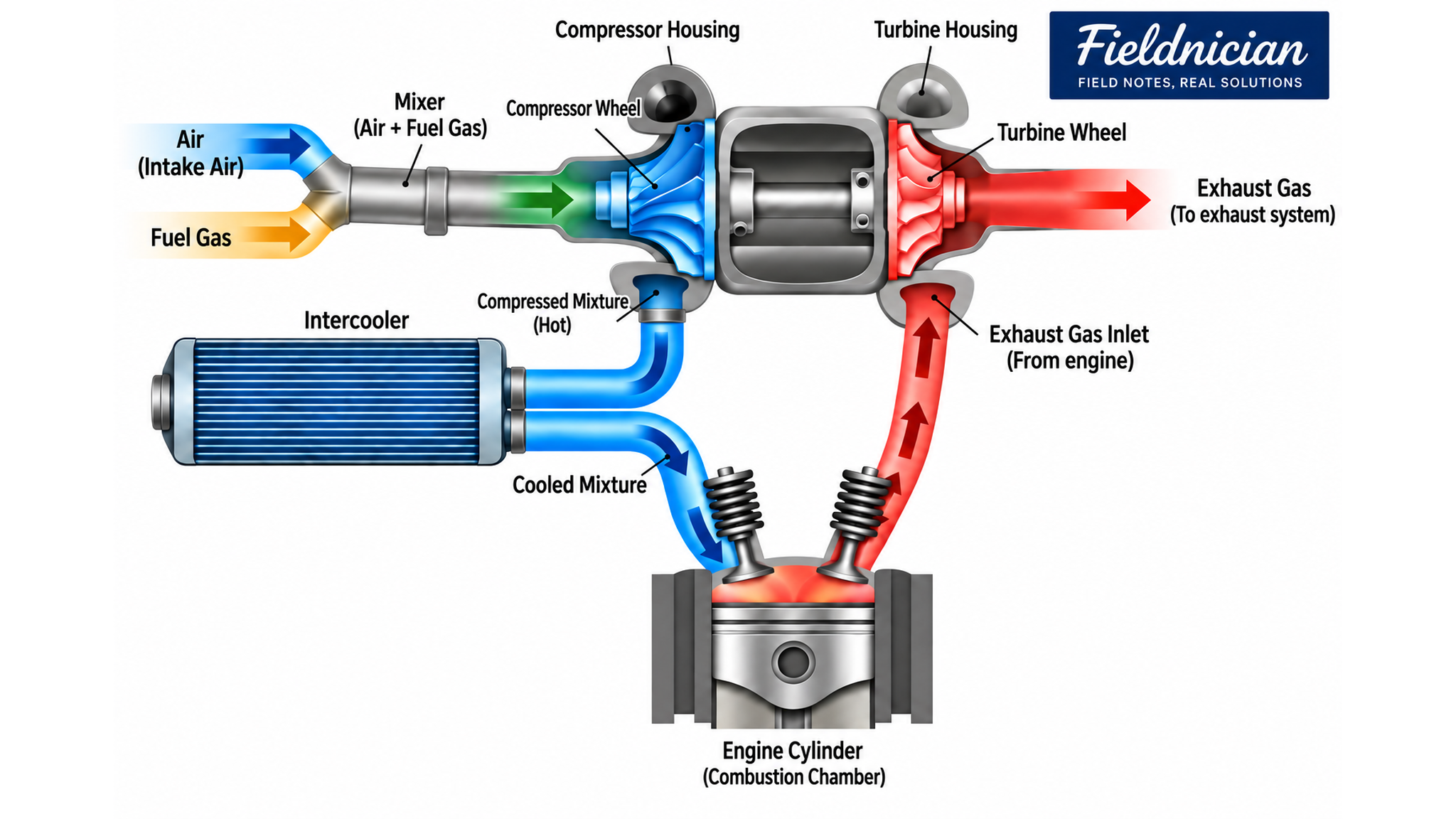

In some of the premixed gas engines I have worked with, the fuel gas and air were mixed before entering the compressor.

In this arrangement, the turbocharger compressor boosts a combustible mixture of fuel gas and air.

The boosted mixture was cooled in a fuel mixture cooler and then supplied to each cylinder through the intake manifold.

The basic flow was as follows:

Fuel gas and air
→ Mixing
→ Boosting by the compressor
→ Cooling in the fuel mixture cooler
→ Intake manifold
→ Cylinders

If the mixer or fuel-supply device is installed downstream of the turbocharger, the compressor may handle air only.

Some engines supply air first and introduce fuel gas at the intake ports or closer to the cylinders.

Before inspecting the turbocharger or intake piping, technicians should determine whether each section contains air or a combustible premixed charge by checking the fuel-gas and intake-system diagrams.

Related article｜The Role of a Gas Engine Intercooler and What to Inspect (Coming Soon)

5. Why Are the Shaft, Bearings, and Lubrication Important?

The shaft connecting the turbine and compressor wheels rotates at very high speed while the engine is operating.

The bearings support the shaft and rotating assembly while controlling radial and axial movement.

Lubricating oil reduces friction between the bearings and shaft, carries away heat, and allows the rotating assembly to operate smoothly.

The compressor and turbine are connected by a common shaft supported by bearings and lubricated with engine oil.

Insufficient oil supply or contaminated lubricating oil can cause wear or damage to the bearings and shaft.

As shaft and bearing wear increases, internal clearances and rotating conditions may change, resulting in abnormal noise or vibration.

Inspection should therefore include not only the shaft and bearings but also the oil-supply and drain lines, external oil leakage, and possible restrictions.

If the turbocharger has a separate cooling circuit, the coolant supply and possible leakage should also be checked according to the manufacturer’s procedure.

6. How Are Intake Cooling and Boost Pressure Related?

Compressing air or an air–fuel mixture increases its temperature.

At the same pressure, a higher temperature lowers the density of the intake gas, so less mass can occupy the same volume. Higher intake temperature can also affect the margin against knock and abnormal combustion.

For this reason, many turbocharged engines use an intercooler or fuel mixture cooler downstream of the turbocharger.

The cooler transfers heat from the compressed air or mixture to cooling water or ambient air.

Reducing the intake temperature increases density and helps supply the required mass of air or mixture to the cylinders.

When the turbocharger compresses the intake charge, the pressure in the intake system can rise above atmospheric pressure. This increased intake pressure is generally referred to as boost pressure.

As engine load increases, demand for fuel and air rises, and exhaust-gas flow and energy may also increase. This can change turbine and compressor speed and increase boost pressure.

However, boost pressure and the actual mass flow of air or mixture are not the same.

Even at the same boost pressure, the mass entering the cylinders may vary with intake temperature, gas composition, piping resistance, and engine operating condition.

Boost pressure may be controlled by a wastegate, bypass system, or another device, depending on the engine design.

Boost pressure should therefore not be used by itself to assess the condition of the turbocharger or the engine’s combustion.

Related article｜How Does Mixture Boost Pressure Affect a Gas Engine? (Coming Soon)

7. What Changes Can Indicate a Turbocharger Problem?

If turbocharger performance deteriorates, the engine may not receive enough boosted air or mixture.

The following changes may appear during operation:
- A change in boost pressure
- Reduced engine output
- Changes in exhaust gas temperature
- Abnormal turbocharger noise or vibration
- Lubricating-oil leakage
- Contamination in the intake or exhaust system
However, these changes do not automatically mean that the turbocharger itself has failed.

A restricted air filter or intake pipe, an intake leak, fouling or increased differential pressure across the intercooler or fuel mixture cooler, increased exhaust-system resistance, and sensor or control-device faults can produce similar symptoms.

: Turbocharger problems can affect boost pressure, engine output, exhaust gas temperature, noise, and vibration. The turbocharger, intake system, and exhaust system should be checked together.

During operation, boost pressure, intake temperature, exhaust gas temperature, engine output, and available turbocharger data should be compared with normal values at a similar load.

Technicians should also listen for unusual changes in high-frequency sound, rubbing noise, or vibration around the turbocharger.

With the engine stopped, inspect the intake and exhaust connections, clamps, flanges, cooler connections, and lubricating-oil lines for leakage, movement, or deformation.

Even when the rotating assembly can be checked without completely disassembling the turbocharger, the engine must first be stopped and secured against starting. The inspection must then follow the manufacturer’s procedure.

8. When Should a Turbocharger Be Disassembled and Inspected?

A turbocharger is not disassembled only after a fault occurs.

Even when no obvious abnormal condition is present, it should be disassembled and inspected at the operating-hour interval specified by the engine or turbocharger manufacturer.

If abnormal noise or vibration, or an unusual change in boost pressure or engine output, appears during operation, an additional inspection may be required before the scheduled interval.

The decision to disassemble the turbocharger and the required maintenance scope should consider:
- Current operating condition
- Maintenance history
- Fuel type and operating environment
- Contamination condition
- Manufacturer’s inspection criteria
After high-load operation, the turbocharger may remain at a high temperature.

If the manufacturer specifies an unloaded running period, cooldown procedure, or shutdown sequence, it should be completed before the engine is stopped. Inspection should begin only after the turbocharger has reached a safe condition.

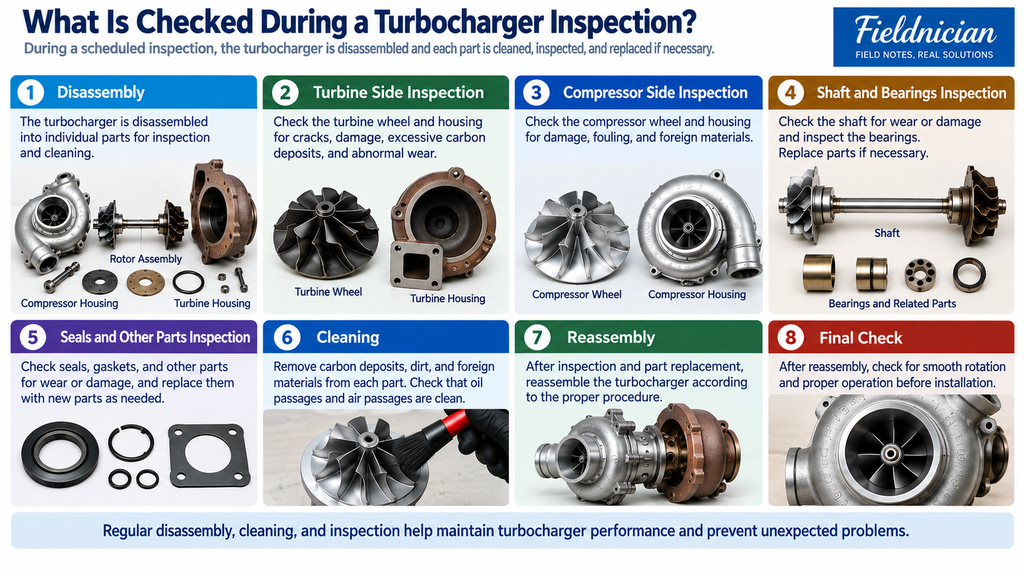

9. What Should Be Checked After the Turbocharger Is Disassembled?

After the turbocharger has been disassembled, inspect the turbine-wheel and compressor-wheel blades for damage and abnormal wear.

The shaft should be checked for wear and damage, while the bearings, seals, and internal clearances should also be inspected.

The inspection may include:
- Damage to the turbine and compressor wheels
- Blade wear and deformation
- Shaft wear and damage
- Bearing and seal condition
- Radial and axial clearances
- Contact marks between rotating and stationary parts
- Oil and carbon deposits
- Damage to the nozzle ring or other fitted components
- Contamination or restriction in the oil-supply and drain passages
A scheduled turbocharger inspection includes disassembly, component checks, cleaning, replacement of worn or damaged parts when necessary, reassembly, and a final operational check.

Where required, rotor balance should be checked using the method specified by the manufacturer. The wheels and other critical components may also need to be inspected for cracks.

Parts that exceed the manufacturer’s limits should be replaced.

Reusable parts should be cleaned using an approved method and inspected again before a reuse decision is made.

Because a turbocharger contains a high-speed rotating assembly, external appearance alone is not enough to determine whether a part can be reused.

Measurements, balancing, crack inspection, and assembly must follow the manufacturer’s limits, required equipment, and maintenance procedures for that turbocharger model.

10. What Should Be Checked After Maintenance?

After the turbocharger has been serviced and assembled, check the lubricating-oil supply and drain lines, intake and exhaust piping, and all related connections.

Before the engine is started or loaded, complete the startup, oil-priming, or pre-lubrication procedure specified by the manufacturer and confirm that oil can reach the bearing system.

If the turbocharger has a separate cooling circuit, also check the coolant piping and possible leakage.

After the engine is started, compare the following items with the data recorded before maintenance:
- Boost pressure
- Intake-air or mixture temperature
- Engine output
- Exhaust gas temperature
- Abnormal turbocharger noise or vibration
- Lubricating-oil supply and drainage
- External oil leakage
- Leakage at intake and exhaust connections
Rather than checking only whether each value falls within its normal range, compare pre-maintenance and post-maintenance data under similar loads and operating conditions.

If unusual noise, vibration, or lubricating-oil leakage appears, determine the cause before continuing operation.

Follow the engine and turbocharger manufacturer’s requirements for post-maintenance checks and operating confirmation.

Conclusion

A turbocharger uses energy from the engine’s exhaust gas to rotate a turbine and drive a compressor through a common shaft.

The compressor then increases the pressure of the air or mixture supplied to the engine.

Stable operation depends on the condition of the shaft and bearings, correct lubrication, and the condition of the intake, exhaust, and cooling systems.

During field inspection, boost pressure, engine output, exhaust gas temperature, noise, and vibration should be evaluated together with the air filter, piping, cooler, exhaust system, and lubricating-oil system.

A condition that appears to be a turbocharger problem may be caused by another part of the intake, exhaust, or control system.

The turbocharger should also be disassembled and inspected at the maintenance interval specified by the manufacturer. After maintenance, operating data should be compared under similar conditions to confirm that normal performance has been restored.
09/14/2026
How Do Fuel Gas and Air Enter a Gas Engine?
In the previous article, we looked at how the intake, compression, power, and exhaust strokes are repeated in a gas engine.

For combustion to occur, fuel gas and air must be supplied to the cylinders under suitable conditions.

Fuel gas travels to the engine through the site gas supply system and the gas train.

Depending on the installation, combustion air may enter through the engine room or be supplied directly through a dedicated outside-air intake duct before passing through the engine intake system.

The point at which fuel gas and air are mixed—and whether mixing takes place before or after turbocharging—varies with the engine design.

In this article, we will look at the separate paths taken by fuel gas and air, where they are mixed, and how the resulting mixture reaches the cylinders.

Related article｜What Is an Internal Combustion Engine? How a Four-Stroke Engine Works

1. Fuel Gas and Air Enter Through Different Paths

Fuel gas and air do not enter the engine through the same piping from the beginning.

Fuel gas passes through the site gas supply system, where its pressure and supply conditions are adjusted, and then travels through the gas train toward the engine.

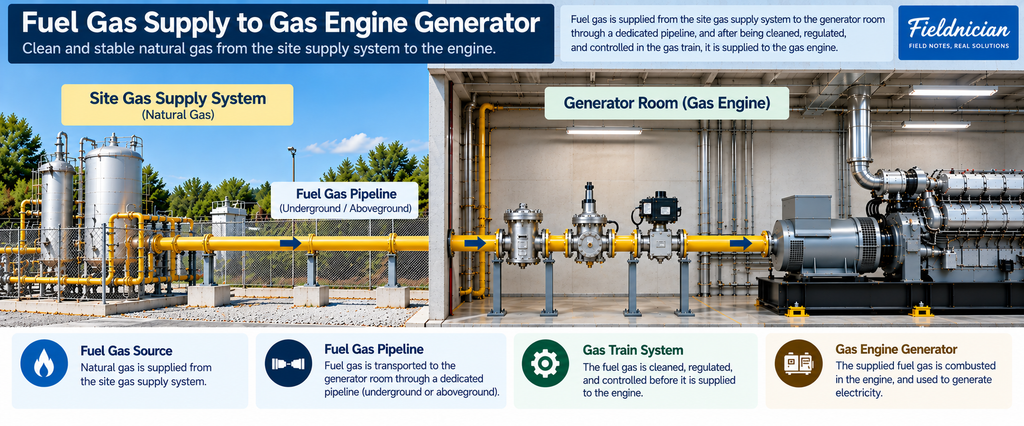

Overall natural gas supply flow from the site supply system to the gas engine generator.

Air may enter through the engine-room air-supply system or a dedicated outside-air intake duct. It then passes through the engine air filter and intake piping before reaching the engine.

The two basic paths can be summarized as follows:

Fuel gas source
→ Site gas supply system
→ Gas train
→ Mixing point or engine

Outside air
→ Engine-room air supply or dedicated intake duct
→ Engine air filter
→ Intake system
→ Mixing point or engine

After travelling through their separate systems, the fuel gas and air are mixed at a point determined by the engine design.

Because the actual supply paths and component arrangements vary among engines and installations, both the fuel-gas and air-intake system diagrams should be checked.

2. How Does Fuel Gas Reach the Engine?

Fuel gas passes through the site gas supply system and is adjusted to the pressure and conditions required by the engine.

It then travels through the gas train before reaching the mixing point or the engine.

Depending on the engine and installation, the gas train may include:
- Isolation valves
- Gas filters
- Pressure-regulating equipment
- Gas valves
- Flow-control devices
- Pressure sensors and other instruments

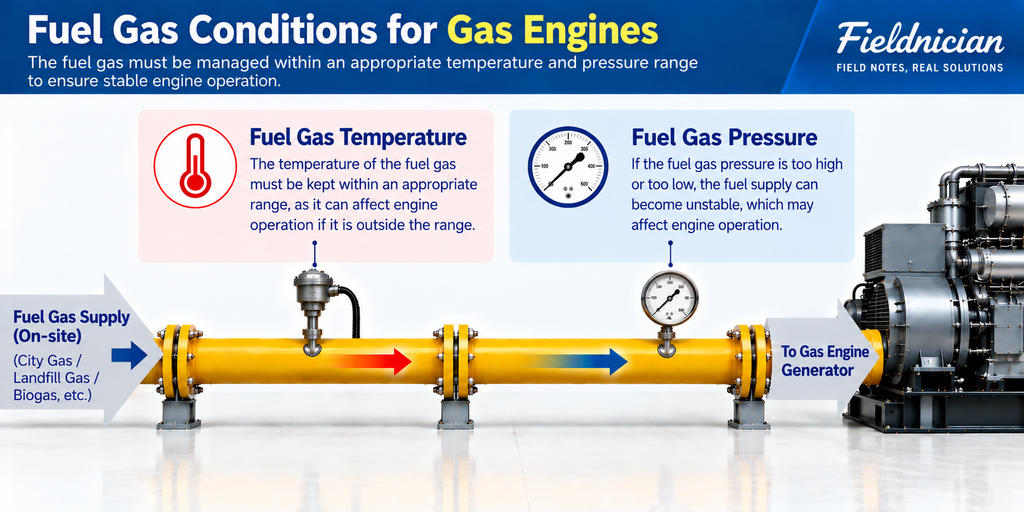

Fuel gas temperature and pressure should be maintained within an appropriate range for stable gas engine operation.

A gas filter reduces the amount of solid contamination reaching the valves and control equipment.

Pressure-regulating equipment adjusts the fuel-gas pressure to a range suitable for the engine. Shutoff devices can stop the gas supply when an abnormal condition is detected, while control devices regulate gas flow according to operating conditions.

However, gas-train arrangements and control methods are not identical in every installation.

Before interpreting a pressure reading, the location of the sensor or pressure gauge should be identified.

Pressure measured upstream or downstream of the gas train, across a gas filter or valve, or near the gas mixer may represent different operating conditions.

Rather than checking only the current value, it is helpful to compare the pressure when the engine is stopped, during startup, and under different loads with normal operating data.

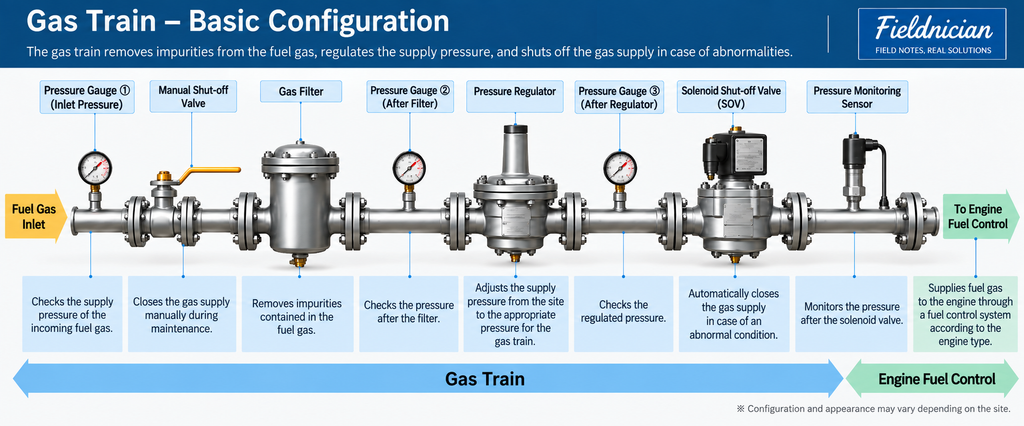

Basic gas train configuration showing fuel gas filtration, pressure regulation, pressure monitoring, automatic shutoff, and delivery to the engine fuel control system.

Related article｜Why Is Fuel Gas Supply Important in a Gas Engine?

3. Engine-Room Ventilation and Engine Air Intake Are Different

An indoor gas engine installation may use an air-supply system to bring outside air into the engine room.

Air entering the engine room may be used for engine combustion, but it also supports room ventilation and helps remove heat released by the engine and generator.

If an air inlet or filter becomes restricted, or if the supply fan loses performance, the volume of air entering the engine room may decrease.

When an engine draws its combustion air from inside the room, insufficient room air supply can affect both the engine intake condition and the engine-room temperature.

However, the path that supplies air to the engine room and the path through which the engine draws combustion air are not necessarily the same.

Some installations supply combustion air directly from outside through a dedicated intake duct.

Engine-room ventilation and the engine intake system downstream of the air filter should therefore be identified and inspected separately.

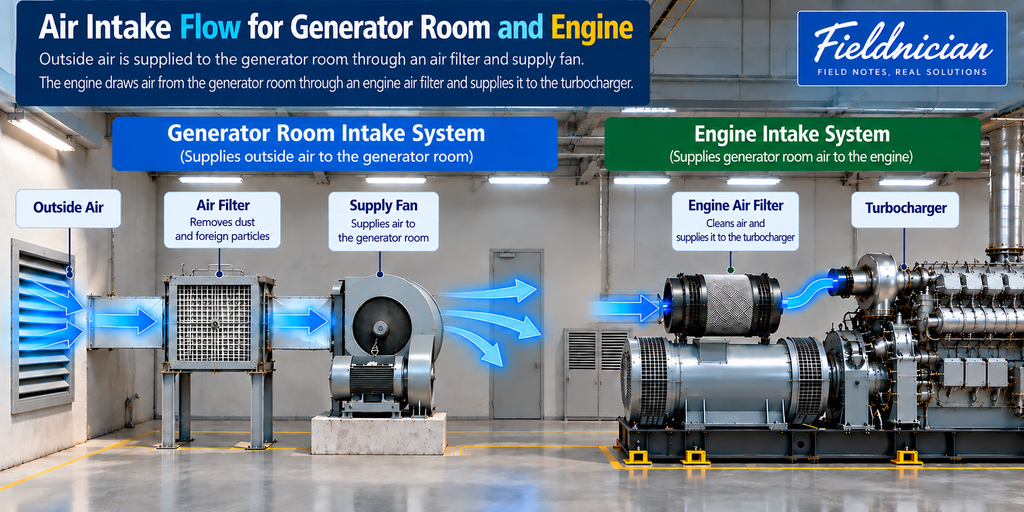

Airflow from the outside air supply to the generator room and from the generator room through the engine air filter to the turbocharger.

4. What Does the Engine Air Filter Do?

Combustion air generally passes through an air filter before entering the engine intake system.

The air filter reduces the amount of dust and other contamination entering the intake system and the engine.

As contamination accumulates, airflow resistance across the filter may increase and restrict the amount of combustion air available to the engine.

The condition of an air filter should not be judged only by its external appearance.

Where measurements are available, the pressure or differential pressure across the filter, boost pressure, and other intake-related operating data can be compared with normal values.

Pressure at one location and differential pressure between two measurement points have different meanings. The measurement locations should therefore be confirmed before the values are interpreted.

After replacing an air filter, the filter installation and intake-pipe connections should be checked for looseness, incorrect assembly, and possible leakage.

5. Where Are Fuel Gas and Air Mixed?

The point at which fuel gas and air are mixed is not the same in every gas engine.

In some of the premixed gas engines I have worked with, the fuel gas and air were mixed upstream of the turbocharger.

The mixture was compressed by the turbocharger compressor, cooled in a fuel mixture cooler, and then supplied to the cylinders through the intake manifold.

The basic flow was as follows:

Fuel gas and air
→ Mixing
→ Boosting by the turbocharger
→ Cooling in the fuel mixture cooler
→ Intake manifold
→ Cylinders

In other engine designs, air may be compressed and cooled before the fuel gas is added.

Some engines may supply fuel gas at the intake ports or at a point closer to the cylinders.

The arrangement of the mixer, throttle valve, turbocharger, and cooler can also vary with the engine design.

A mixing arrangement found on one engine should therefore not be assumed to apply to every gas engine.

The actual mixing point and supply path should be confirmed using the fuel-gas and intake-system diagrams and the engine manufacturer’s technical information.

Related article｜How Does a Gas Engine Turbocharger Work?
Related article｜The Role of a Gas Engine Intercooler and What to Inspect

6. How Does the Mixture Reach the Cylinders?

After the fuel gas and air are mixed, the mixture travels through the intake system and intake manifold to each cylinder.

Depending on the engine design, a throttle valve may control the amount of mixture supplied to the cylinders.

When engine load increases, more power is required. The control system therefore adjusts the amount of fuel gas, air, or mixture delivered to the engine.

The components used to regulate the supply and engine output vary according to the engine design and control strategy.

Changes in the pressure or temperature of the boosted mixture can affect the amount entering the cylinders and the resulting combustion condition.

Before interpreting mixture pressure or temperature, the location of the sensor should be identified.

A value measured where only air is flowing can have a different meaning from a value measured after fuel gas has been added.

The ratio of fuel gas to air can also affect engine output, combustion stability, and exhaust gas temperature.

A mixture that is too rich or too lean may become unstable, but the correct mixture range is not the same for every engine.

Lean-burn gas engines are specifically designed to operate with excess air. Mixture condition should therefore be assessed using the manufacturer’s specified range and the engine’s normal operating data.

The mixture supply condition can be assessed by comparing engine load, boost pressure, mixture temperature, lambda, and the exhaust gas temperature of each cylinder.

The available sensors and operating data vary among engines, and a mixture-supply problem should not be diagnosed from a single value alone.

Related article｜How Does Mixture Boost Pressure Affect a Gas Engine?

7. Follow the Supply Paths During Field Inspection

The condition of the fuel gas and air supply should not be judged from a single instrument reading.

A basic inspection sequence can be organized as follows:

Check the fuel-gas supply path
→ Check the engine-room air supply or outside-air intake
→ Check the engine air filter and intake piping
→ Identify where fuel gas and air are mixed
→ Check mixture pressure and temperature
→ Compare engine load and combustion condition

On the fuel-gas side, confirm that the gas is being supplied at the pressure and conditions required by the engine.

Even when fuel-gas pressure remains normal, changes in gas composition or heating value can affect engine output and combustion at the same flow rate.

The gas composition, heating value, and condition of the gas-treatment equipment may also need to be checked, depending on the fuel being used. Fuel quality and gas treatment will be covered separately in a related article.

On the air side, inspect the engine-room air supply or dedicated outside-air intake, engine air filter, and intake piping for restrictions and leakage.

A leak in the intake piping can prevent the required quantity of air or mixture from reaching the engine.

A leak in piping that carries a premixed charge of fuel gas and air presents a different hazard from an ordinary air leak and must be inspected according to the safety procedure for that engine.

After the fuel gas and air have been mixed, compare boost pressure, mixture temperature, lambda, and cylinder exhaust gas temperatures with engine load.

Detailed fault causes should be investigated in the related articles covering the fuel-gas, intake, and boost systems.

Related article｜How Should Gas Engine Intake and Boost-System Problems Be Inspected?

8. Safety Precautions During Inspection

Fuel-gas and premixed-charge systems may retain combustible gas and pressure even after the engine has stopped.

Before dismantling piping, valves, or mixture-system components, isolate the fuel gas supply, prevent unintended gas admission or engine restart, and safely remove the remaining pressure and gas.

Ventilate the system according to the approved procedure and verify the gas concentration with an approved gas detector before beginning work.

Gas leakage should be checked using an approved detector or another method permitted by the site. A flame must never be used to search for a gas leak.

Work that could create a flame, spark, or another ignition source must not begin until ventilation and gas testing have been completed.

After inspection or maintenance, check the leak-tightness of the connections, valve positions, and the assembly of any components that were removed.

Fuel gas should then be restored and the engine returned to operation according to the manufacturer’s requirements, the system diagrams, and the site’s gas-safety procedure.

Conclusion

Fuel gas and air enter a gas engine through separate systems.

Fuel gas passes through the site gas supply system and gas train. Depending on the installation, combustion air may enter through the engine room or a dedicated outside-air duct before passing through the engine air filter and intake system.

The point at which the fuel gas and air are mixed, and whether mixing takes place before or after turbocharging, depends on the engine design.

In some of the premixed engines I have worked with, the fuel gas and air were mixed before the turbocharger and then supplied to the cylinders after boosting and cooling.

During field inspection, the fuel-gas and air paths should be followed using the system diagrams. Pressure, temperature, engine load, and combustion data should then be compared at the appropriate points in the system.
09/12/2026
What Is an Internal Combustion Engine? How a Four-Stroke Engine Works

In the previous article, we looked at how a gas engine burns fuel gas to produce rotational power and drive a generator.

To understand the systems and major components of a gas engine, it is helpful to begin with the basic operating principles of an internal combustion engine and the sequence of the four-stroke cycle.

In this article, we will look at what an internal combustion engine is and how the piston, intake valve, and exhaust valve move during the four-stroke cycle of a power-generation gas engine.

Related article｜What Is a Gas Engine? A Practical Introduction

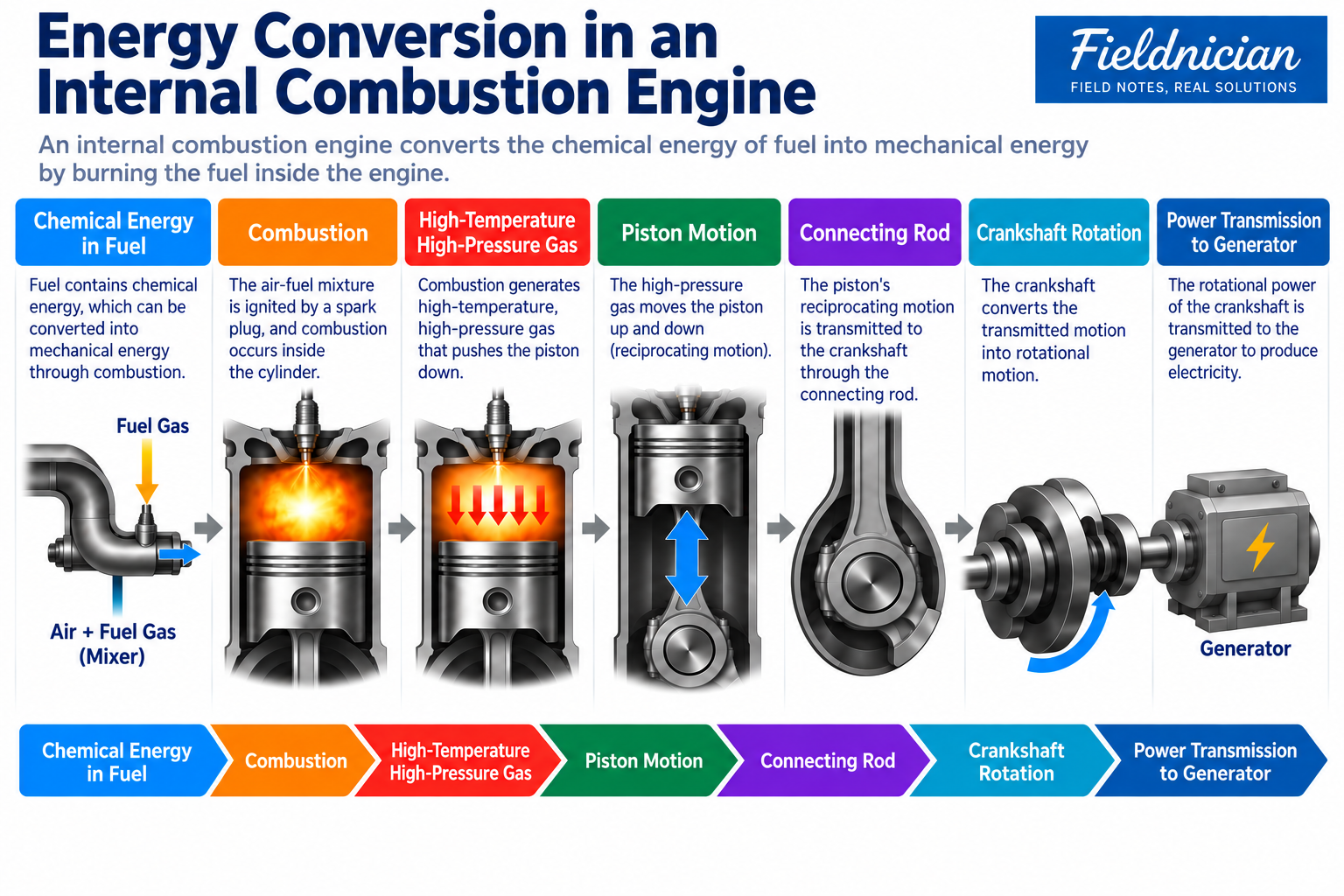

1. What Is an Internal Combustion Engine?

An internal combustion engine burns fuel inside the engine and converts the resulting energy into mechanical motion.

When combustion occurs, high-temperature, high-pressure gases are produced inside the cylinder. The pressure pushes the piston and creates reciprocating motion.

The piston’s movement is transmitted through the connecting rod to the crankshaft, which converts it into rotary motion.

Chemical energy in the fuel → Combustion → Cylinder pressure → Piston movement → Crankshaft rotation

In a power-generation gas engine, this rotational power is transmitted to a generator to produce electricity.

2. Is a Gas Engine an Internal Combustion Engine?

A gas engine is a type of internal combustion engine that can use gaseous fuels such as natural gas, biogas, and landfill gas.

Many spark-ignited gas engines used for power generation form a combustible mixture of fuel gas and air and initiate combustion with a spark from a spark plug.

A gasoline engine operates on a similar basic principle because it also uses a spark plug to ignite an air–fuel mixture.

A conventional diesel engine, however, compresses air to a high pressure and then injects fuel so that it ignites through the heat generated by compression.

Not all gas engines use the same structure or ignition method.

The point at which the mixture is formed, the method used to supply the fuel, and the way combustion is initiated may vary depending on the engine application, manufacturer, and fuel.

The combustion system of an actual engine should therefore be confirmed using the manufacturer’s technical information and the system diagram for that engine.

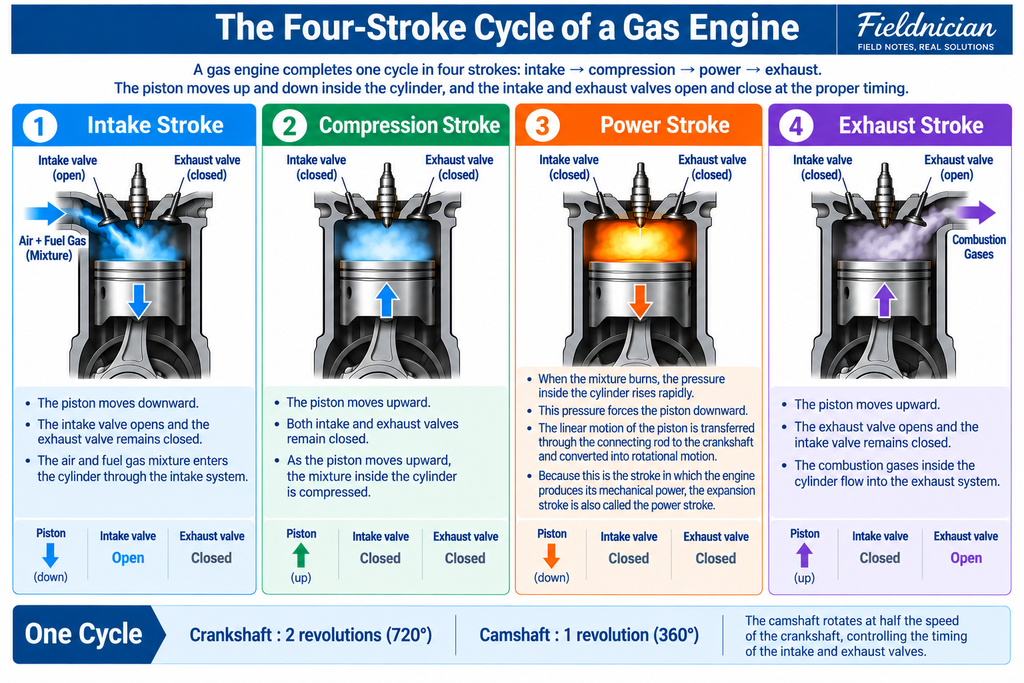

3. How Does a Four-Stroke Engine Work?

The Four-Stroke Cycle of a Gas Engine

A four-stroke engine completes one combustion cycle through four separate strokes.

Intake → Compression → Power → Exhaust

During the intake stroke, air or an air–fuel mixture enters the cylinder.

During the compression stroke, the piston moves upward and compresses the air or mixture inside the cylinder.

During the power stroke, combustion pressure pushes the piston downward and produces useful mechanical power.

During the exhaust stroke, the combustion gases are discharged from the cylinder.

During one complete cycle, the piston moves downward twice and upward twice, while the crankshaft completes two full revolutions.

By continuously repeating these four strokes, the engine produces rotational power.

4. What Enters the Cylinder During the Intake Stroke?

During the intake stroke, the piston moves from near top dead center toward bottom dead center.

The intake valve opens and connects the cylinder to the intake system, allowing the air or mixture required for combustion to enter the cylinder.

Whether air or a premixed charge of fuel gas and air enters the cylinder depends on the engine’s fuel-supply system.

In the premixed gas engines I have worked with, the fuel gas and air were mixed before entering the cylinders.

The mixture then passed through the boosting and cooling processes before being supplied to each cylinder through the intake manifold.

The exhaust valve is generally closed during the main part of the intake stroke. However, the actual opening and closing times of the intake and exhaust valves do not necessarily coincide exactly with top dead center or bottom dead center.

The valves open and close according to the timing specified by the engine manufacturer as the cycle proceeds into the compression stroke.

Related article｜How Do Fuel Gas and Air Enter a Gas Engine? (Coming Soon)

5. Why Is the Mixture Compressed?

During the compression stroke, the piston moves from near bottom dead center toward top dead center.

During the main part of the compression stroke, the intake and exhaust valves are closed, and the air or mixture inside the cylinder is compressed.

As the mixture is compressed, its pressure and temperature increase, creating the conditions required for ignition and combustion.

In a typical spark-ignited gas engine, the ignition system begins the combustion process near the end of the compression stroke.

Ignition timing is not fixed at the exact point when the piston reaches top dead center. It may be controlled according to engine speed, load, fuel gas condition, and intake conditions.

Effective compression also depends on the condition of the components that seal the combustion chamber, including the piston rings, cylinder liner, intake valve, and exhaust valve.

Related article｜How Does a Gas Engine Ignition System Work? (Coming Soon)
Related article｜Gas Engine Ignition Timing and the Role of Pickup Sensors (Coming Soon)

6. The Power Stroke Produces Engine Power

When the ignited mixture burns near the end of the compression stroke, the temperature and pressure inside the cylinder rise rapidly.

The resulting combustion pressure pushes the piston toward bottom dead center and produces useful engine power. For this reason, the expansion stroke is also called the power stroke.

The force acting on the piston is transmitted through the connecting rod to the crankshaft.

The crankshaft converts the piston’s linear reciprocating motion into rotary motion that keeps the engine rotating and drives the generator.

Gas engine output and combustion stability are affected by several factors, including fuel gas and air delivery, mixture condition, compression, and ignition timing.

Related article｜How Do the Connecting Rod and Crankshaft Work? (Coming Soon)

7. The Exhaust Stroke Removes Combustion Gases

As the power stroke approaches its end, the exhaust valve begins to open, and the piston moves upward from near bottom dead center toward top dead center.

As the piston rises, the combustion gases move through the exhaust valve and into the exhaust system.

The exhaust gas flow may be used to drive a turbocharger. Depending on the installation, some of the remaining exhaust heat may also be recovered.

Restricted exhaust flow can affect gas exchange inside the cylinder and influence the next combustion cycle.

The actual opening and closing times of the exhaust valve do not necessarily coincide exactly with top dead center or bottom dead center.

When the exhaust stroke ends, the intake process begins again and the same cycle is repeated.

Related article｜How Does a Gas Engine Turbocharger Work?
Related article｜Where Does the Heat from a Gas Engine Go? Understanding Heat Recovery in CHP Systems

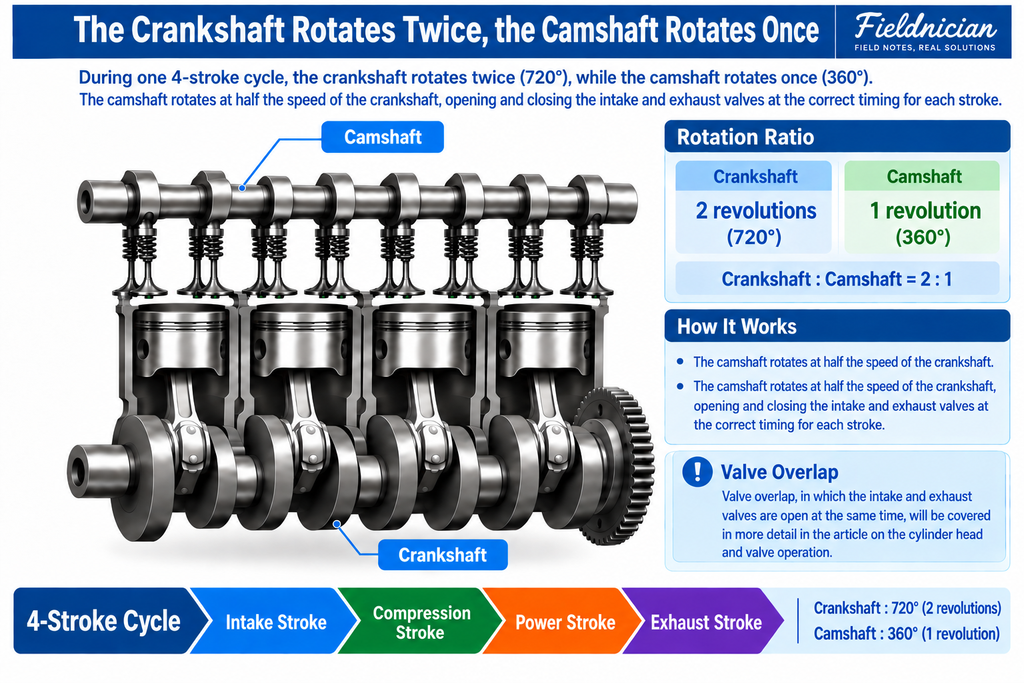

8. The Crankshaft and Camshaft Rotate at Different Speeds

In one four-stroke cycle, the crankshaft makes two revolutions (720°) while the camshaft makes one revolution (360°).

During one complete four-stroke combustion cycle, the crankshaft rotates twice, or 720 degrees.

During the same period, the camshaft that controls the intake and exhaust valves rotates once, or 360 degrees.

Crankshaft : Camshaft = 2 : 1

The camshaft rotates at half the speed of the crankshaft and operates the valve train according to each stage of the four-stroke cycle.

If the relationship between the crankshaft and camshaft is incorrect, the valves may not open and close at the correct points in the piston cycle.

This can interfere with the intake and exhaust processes and affect engine output and combustion stability. Depending on the engine design and the extent of the timing error, it may also result in mechanical damage.

The condition of the valve train, valve clearance, and valve timing are therefore important inspection items.

Related article｜How Do a Gas Engine Cylinder Head and Its Intake and Exhaust Valves Work? (Coming Soon)

9. How Do Multiple Cylinders Deliver Power?

In a multicylinder engine, all cylinders do not perform the same stroke at the same time.

Each cylinder proceeds through a different part of the four-stroke cycle, and the power strokes occur in a specified sequence to deliver rotational force to the crankshaft.

The sequence in which combustion begins in the cylinders is called the firing order.

The firing order is determined by factors such as the cylinder arrangement and crankshaft design. It can also affect engine vibration and rotational stability.

When inspecting the ignition system or valve train, the cylinder numbers, firing order, and crankshaft position must be identified correctly.

Because the cylinder numbering and firing order vary among engines, the manufacturer’s technical information should always be followed.

10. Why Is the Four-Stroke Cycle Important in the Field?

When a problem occurs in a gas engine, the four-stroke sequence can be used to identify whether the change began during the intake, compression, combustion, or exhaust process.

A problem in the intake system may prevent enough air or mixture from entering the cylinder.

Changes in the condition of the piston rings, cylinder liner, or valves can affect cylinder compression.

If ignition and combustion do not occur correctly, cylinder output, exhaust gas temperature, and knock data may change.

Problems with the intake or exhaust valves or the exhaust system can interfere with gas exchange inside the cylinder.

Instead of examining only the component most closely associated with an alarm, it is better to follow the four-stroke sequence and compare the related systems and operating data.

Understanding the basic operating sequence makes it easier to identify which process changed and how that change affected the other engine systems.

Conclusion

An internal combustion engine burns fuel inside the engine to produce reciprocating piston motion and converts that motion into crankshaft rotation.

In a four-stroke gas engine, the intake, compression, power, and exhaust strokes are repeated continuously.

During one complete cycle, the crankshaft rotates twice while the camshaft rotates once, coordinating the movement of the pistons and valves.

Whether air or a premixed air–fuel charge enters the cylinder, and how combustion is initiated, depends on the engine design.

Understanding the four-stroke cycle provides a foundation for understanding the fuel, intake, and ignition systems, as well as the operation of the valves, pistons, connecting rods, and crankshaft.

09/11/2026
What Is a Gas Engine? A Practical Introduction
When people think of a generator, they often picture a machine that simply produces electricity. A combined heat and power system, however, does more than that.

A gas engine drives a generator to produce electricity, while some of the heat generated by the engine can also be recovered and used for hot water, space heating, or industrial processes.

When I first encountered a gas engine CHP system in the field, I initially thought of it as an engine connected to a generator. In practice, however, it was a complex installation in which several systems had to operate together.

In this article, we will look at how a gas engine produces mechanical power, how that power is converted into electricity, how heat can be recovered, and what should be checked during operation.

1. What Is a Gas Engine?

A gas engine is a type of internal combustion engine that uses a gaseous fuel such as natural gas, biogas, or landfill gas.

The types of fuel gas that can be used and the required fuel conditions vary depending on the engine. Differences in methane content, heating value, moisture, and impurities may affect the required gas treatment equipment and fuel control method.

In a typical spark-ignited gas engine used for power generation, fuel gas and air are supplied under suitable conditions and ignited inside the cylinders to produce power.

When combustion occurs, the pressure inside the cylinder rises and pushes the piston. The piston’s reciprocating motion is transmitted through the connecting rod and converted into rotary motion by the crankshaft.

The basic energy conversion process can be summarized as follows:

Fuel gas and air → Combustion → Piston movement → Crankshaft rotation

The point at which the fuel gas and air are mixed, as well as the way the mixture is supplied to the cylinders, may vary depending on the engine design.

To keep this process stable, a gas engine requires several supporting systems, including the fuel gas, intake, ignition, cooling, lubrication, and exhaust systems.

Related article｜What Is an Internal Combustion Engine? How the Four-Stroke Cycle Works in a Gas Engine (Coming Soon)

2. How Does Engine Rotation Become Electricity?

A gas engine does not produce electricity directly.

The engine converts the chemical energy of the fuel into mechanical rotation. The generator then converts that rotation into electrical energy.

The engine and generator may be connected through a coupling, gearbox, or another type of power transmission system, depending on the equipment design.

As the engine drives the generator, the rotating magnetic field inside the generator induces voltage in the stator windings.

The overall process can be summarized as follows:

Fuel gas and air → Combustion → Engine rotation → Generator operation → Electricity production

The electricity produced may be used by equipment at the facility or supplied while operating in parallel with the utility grid, depending on the site’s electrical system and operating conditions.

Related article｜How Is Engine Power Transmitted to the Generator?
Related article｜How Does a Generator Produce Electricity?

3. Why Is Heat Recovery Important?

Not all the energy supplied to a gas engine is converted into electricity.

Some of the energy produces mechanical power, while another portion leaves the engine as heat through the cooling water and exhaust gas.

In a power-only installation, this heat may be released through a radiator or another cooling system. In a combined heat and power system, however, useful heat is recovered instead of being discharged entirely to the surroundings.

Jacket cooling water circulates through the engine and absorbs heat from components such as the cylinder heads and liners. This heat can then be transferred through a heat exchanger.

The exhaust gas also contains thermal energy. Depending on the site configuration, some of this heat may be recovered through an exhaust gas heat exchanger.

The basic heat recovery process can be summarized as follows:

Heat from the engine → Cooling water and exhaust gas → Heat exchangers → Usable heat

The recovered heat may be used for space heating, domestic hot water, or industrial processes.

The actual heat sources, heat exchanger arrangement, and final use of the recovered heat depend on the engine, the site configuration, and the facility’s heat demand.

I have encountered gas engine CHP systems installed at department stores, hospitals, apartment complexes, and district energy facilities.

I have also worked at power generation sites using landfill gas and biogas as well as natural gas. Although the installation conditions and fuels were different, the basic purpose remained the same: to make practical use of both electricity and recoverable heat.

Related article｜Where Does the Heat from a Gas Engine Go? Understanding Heat Recovery in CHP Systems

4. What Systems Does a Gas Engine Need?

A gas engine operates as part of a system in which several supporting systems are closely connected.

The fuel gas system supplies fuel to the engine at the required pressure and condition. The intake system supplies the air needed for combustion.

Depending on the engine design, a turbocharger may compress air or an air–fuel mixture before it enters the cylinders, while an intercooler reduces its temperature.

The ignition system initiates combustion at the required timing. The jacket cooling system removes and transfers heat from the engine, while the lubrication system reduces friction and wear between moving components.

The exhaust system carries combustion gases away from the engine. Energy remaining in the exhaust gas may also be used to drive the turbocharger or recovered as useful heat.

The engine’s mechanical output is transmitted to the generator, while the control and monitoring systems supervise operating conditions and collect data from each system.

A change in one system may appear as a change in temperature, pressure, combustion condition, or engine output elsewhere.

For this reason, troubleshooting a gas engine requires more than checking an individual component. It is important to follow the complete process from fuel supply and combustion to power generation and heat rejection.

Related article｜Main Components of a Gas Engine CHP System and Their Functions

5. What Should Operators Monitor in the Field?

Operating a gas engine involves more than starting the engine and checking its electrical output.

During operation, the following conditions may be monitored:
- Engine load and output
- Engine speed
- Exhaust gas temperature for each cylinder
- Jacket cooling water temperature and pressure
- Lubricating oil pressure and temperature
- Fuel gas pressure
- Intake air or mixture temperature
- Boost pressure
- Ignition-system status and knock data
- Abnormal vibration or noise
- Oil and coolant leakage
Checking whether each value remains within the manufacturer’s specified range is important. However, comparing the current values with normal operating data recorded under similar load and operating conditions can provide a clearer picture of the engine’s condition.

A single instrument reading should not be used to determine the cause of a problem. Operators should identify which value changed first and then compare it with related data from the other systems.

Understanding the relationship between operating values makes it easier to detect small changes before they develop into more serious problems.

6. Why Are Scheduled Inspection and Preventive Maintenance Necessary?

Gas engines used for power generation often operate continuously for long periods.

Even when an engine appears to be operating normally, the condition of its spark plugs, valves, filters, lubricating oil, cooling water, turbocharger, and other components continues to change over time.

My field work has mainly involved scheduled inspections, preventive maintenance, and repairs.

Scheduled inspections are carried out according to the intervals and inspection items specified by the manufacturer. Preventive maintenance involves identifying worn components or deteriorating performance and taking action before a failure occurs.

When a fault does occur, replacing the damaged component is not always enough.

It is also important to determine which operating value changed first and what conditions may have caused the component to fail. This process helps reduce the possibility of the same problem occurring again.

Because an unexpected shutdown of a generating system can affect the operation of an entire facility, maintenance history and normal operating data should be recorded and used during future inspections.

7. What Will Fieldnician Cover?

Fieldnician organizes gas engine structures and operating principles by following the flow of each system.

The articles will cover the basic operating principles of gas engines, the functions of their fuel, intake, ignition, cooling, lubrication, and exhaust systems, and the structure and inspection methods of major components.

They will also explain what should be checked when operating data differs from normal values and how possible causes can be narrowed down by following the related systems.

Based on field experience and technical references, Fieldnician provides practical information that can be applied to gas engine operation, inspection, maintenance, and troubleshooting.

Conclusion

A gas engine burns a mixture of fuel gas and air inside its cylinders. The resulting combustion pressure moves the pistons, and their reciprocating motion is converted into crankshaft rotation.

This mechanical rotation is transmitted to a generator and converted into electrical energy. In a combined heat and power system, heat from the jacket cooling water and exhaust gas can also be recovered and used where it is needed.

A gas engine CHP installation is not simply an engine connected to a generator. It is a complete system in which several supporting systems operate together, and a change in one system can affect the overall condition of the equipment.

In the field, understanding how energy moves from fuel gas to combustion, mechanical power, electricity, and recoverable heat is more useful than simply memorizing component names.

Consistently recording normal operating data and comparing it with current conditions is one of the basic steps in evaluating the condition of a gas engine.
09/09/2026
